Painting:

Basic color of wings and fuselage is white with an

8-color rainbow scheme. New painted in 1996.

The spinner is polished aluminum.

Panel:

The red plastic parts of the panel are in original condition, but polished. The instrument panel is flat aluminium with a matt finished, black surface. The avionics are also bordered with matt finished black aluminum parts to avoid visible gaps.

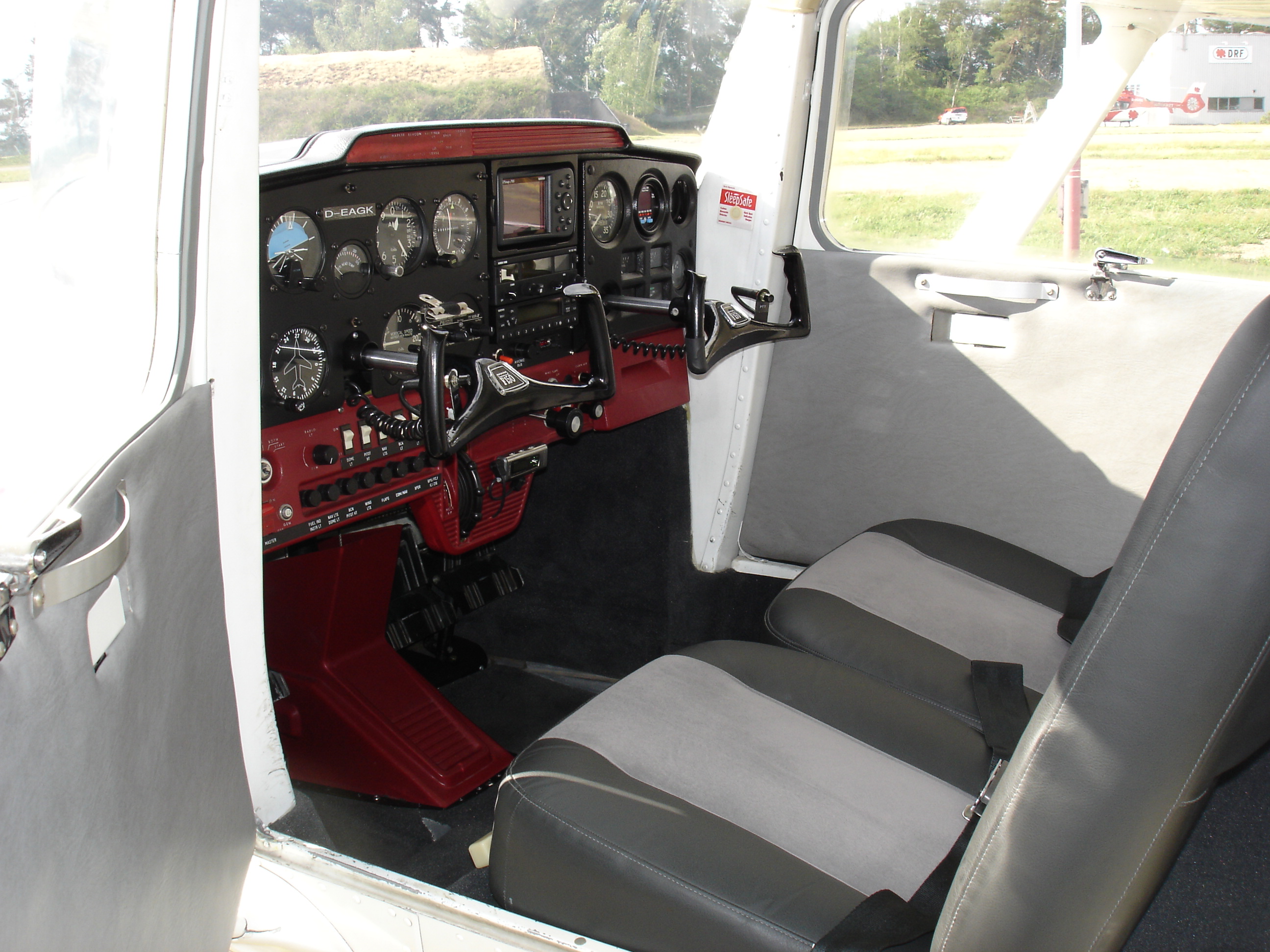

Interieur:

The seats are original Mercedes-Benz gray leather with center stripes of light gray Microfiber. The floor is anthracite carpet. The structure of the door panels is fiberglass covered with thin foam and gray synthetic leather.

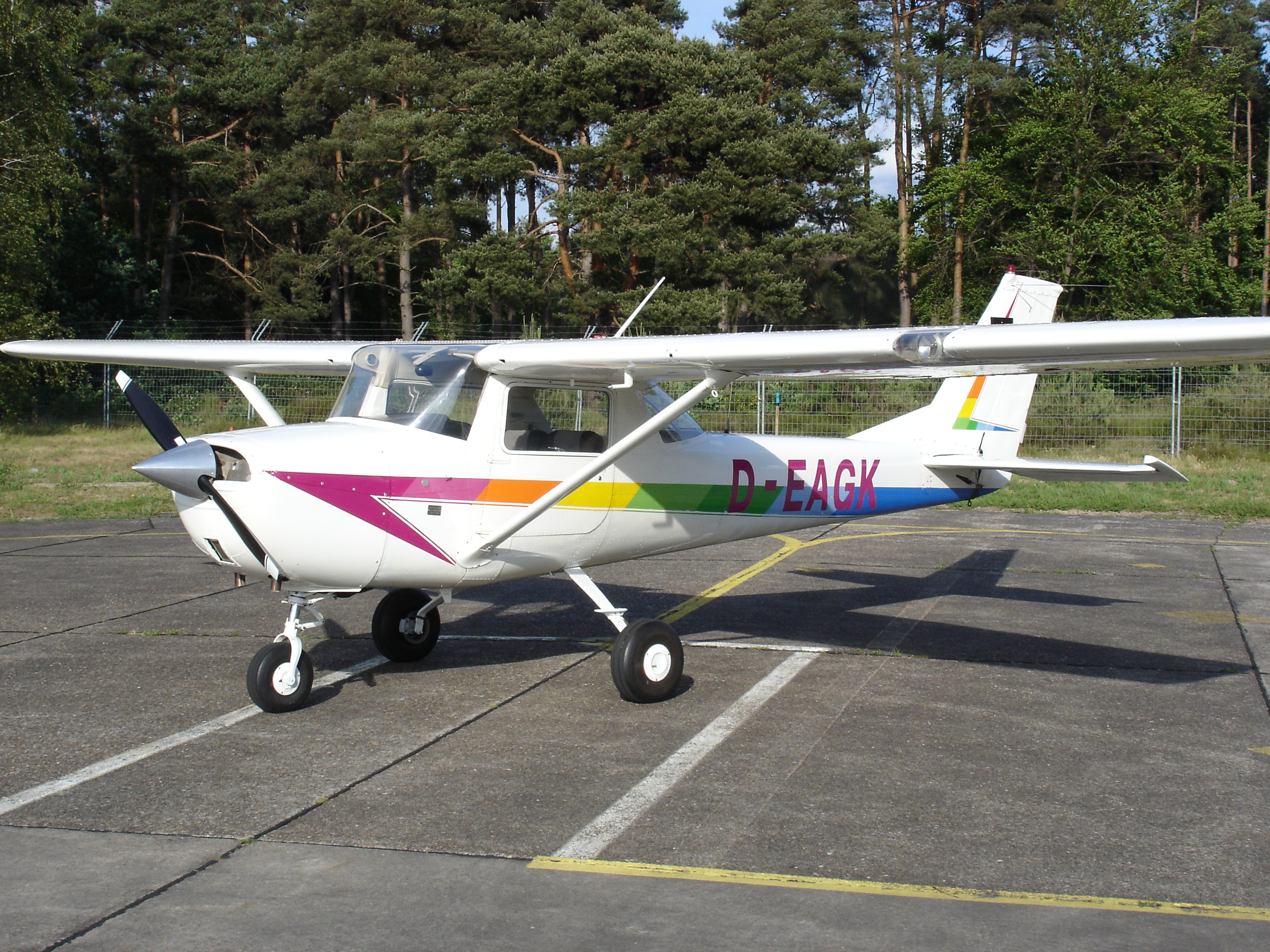

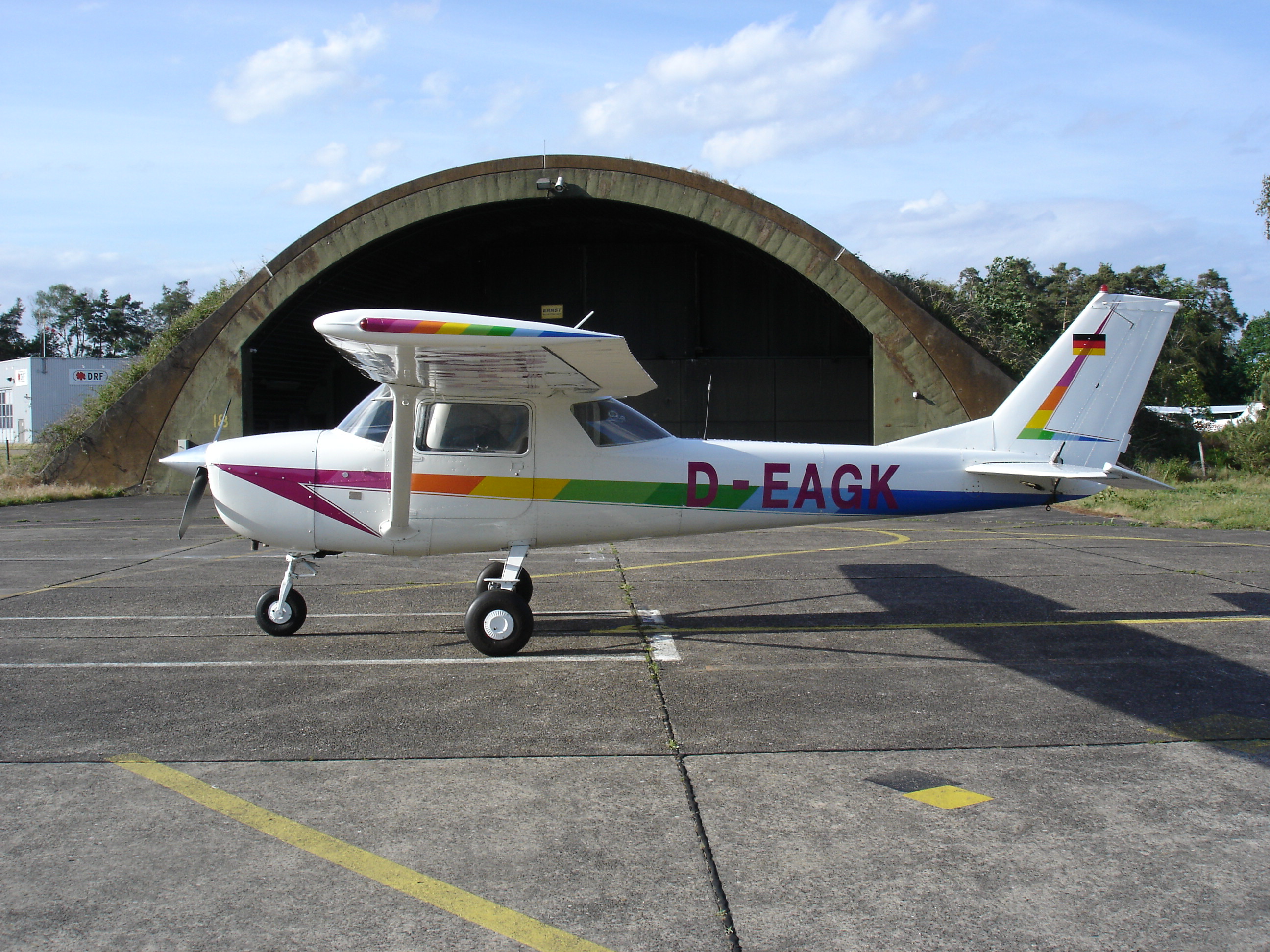

My aircraft is a Cessna F150 J, produced 1969 in Reims/France as serial number 508,

callsign is D-EAGK. The homebase is EDSB (Karlsruhe/Baden-Baden, Germany)

Instruments:

Speed indicator (mph and kts)

Artificial horizon

Gyro and lighted compass

Altimeter (feet, milibars)

Turn&Bank indicator

Vertical speed indicator (feet per minute)

Fuel Computer JPI Fluel Scan 450

CHT, OAT, RPM, Fuel LH/RH, oil temperature,

oil pressure, suction

ELT ACK E-01, panel operated

Avionics:

COM/NAV KingBendix KX 125

External VOR/LOC Indicator KI 203

Transponder Garmin GTX 330 (Mode S)

GPS Garmin GPS MAP 296 with ext. antenna

2-place intercom with MP3 player

Avionics master switch

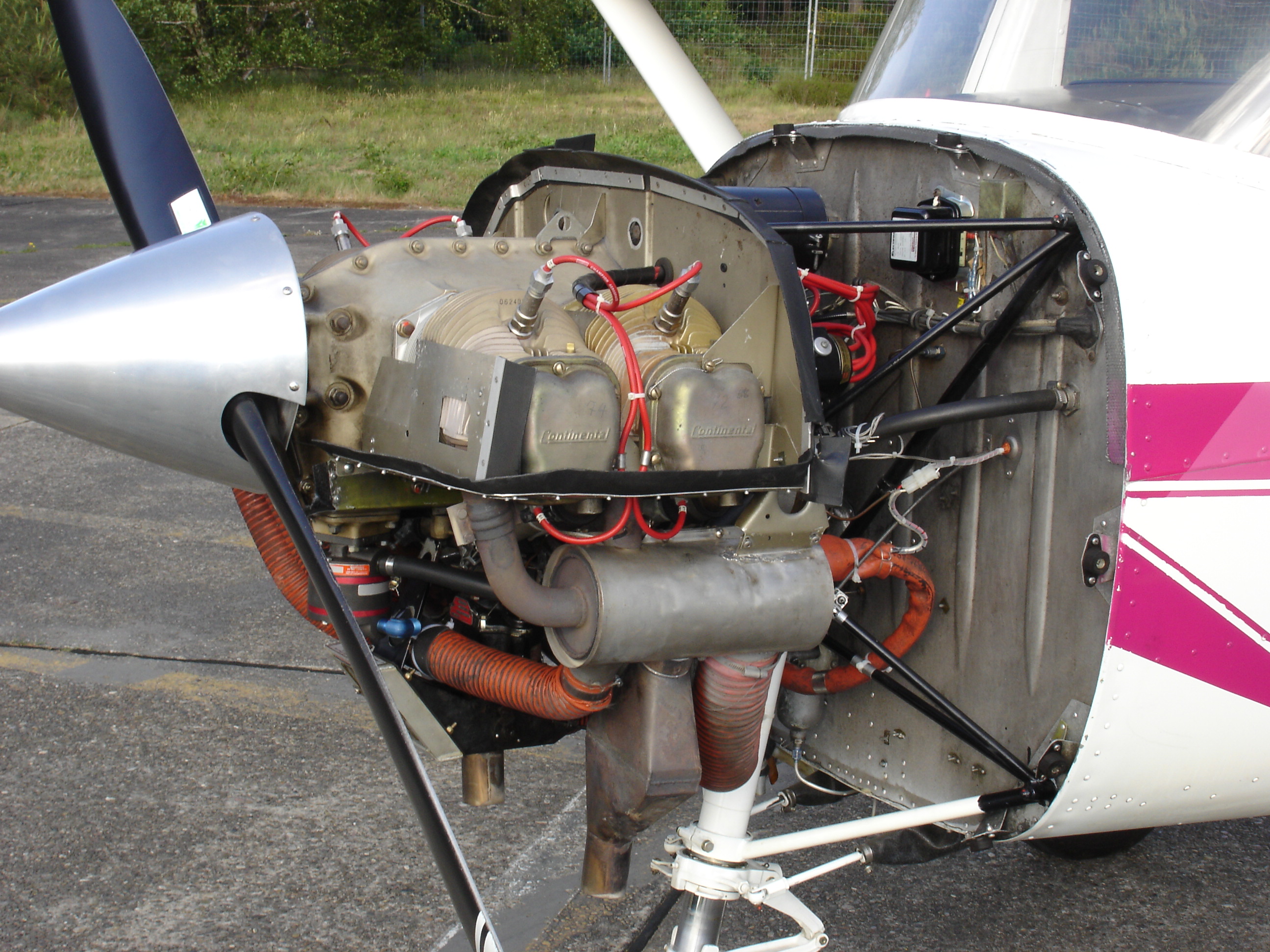

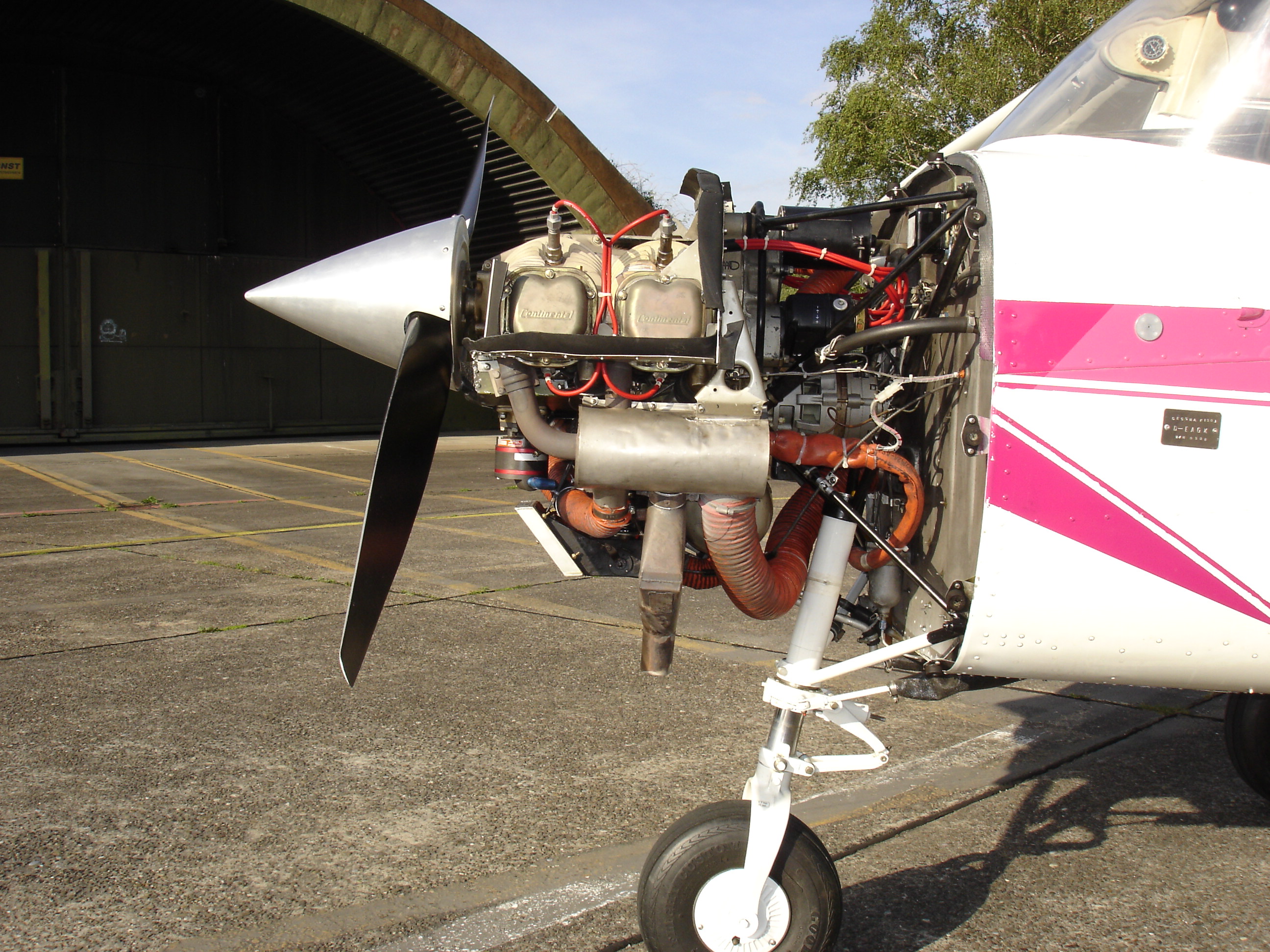

Engine:

Rolls-Royce Continental O-200A

4 cylinder opposed, air cooled

100 BHP @ 2750 rpm

Displacement: 200 qinch / 3,3 L

Compression ratio: 7,0:1

Fuel: AVGAS 100LL or MOGAS (STC)

Fuel burn: 23 L/hr @ 75%

The time between overhaul (TBO): 1.800 hrs

Weight: Approx. 95 kp with attached parts

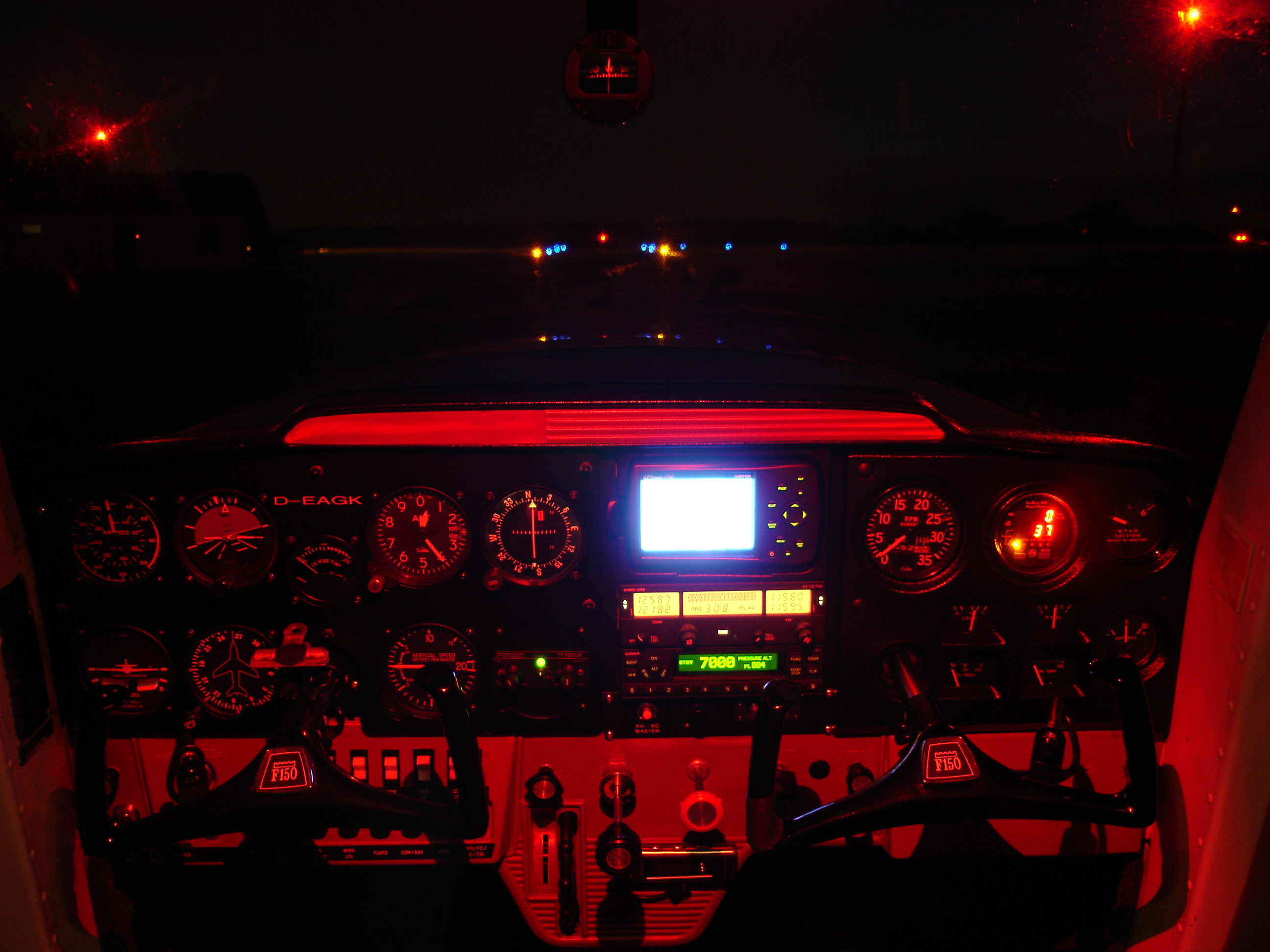

Cockpit lights:

The instruments are lighted by an adjustable red light

at the headliner which also includes a panel activated

white cabin light.

The COM/NAV, Transponder and the GPS are internally

lighted.

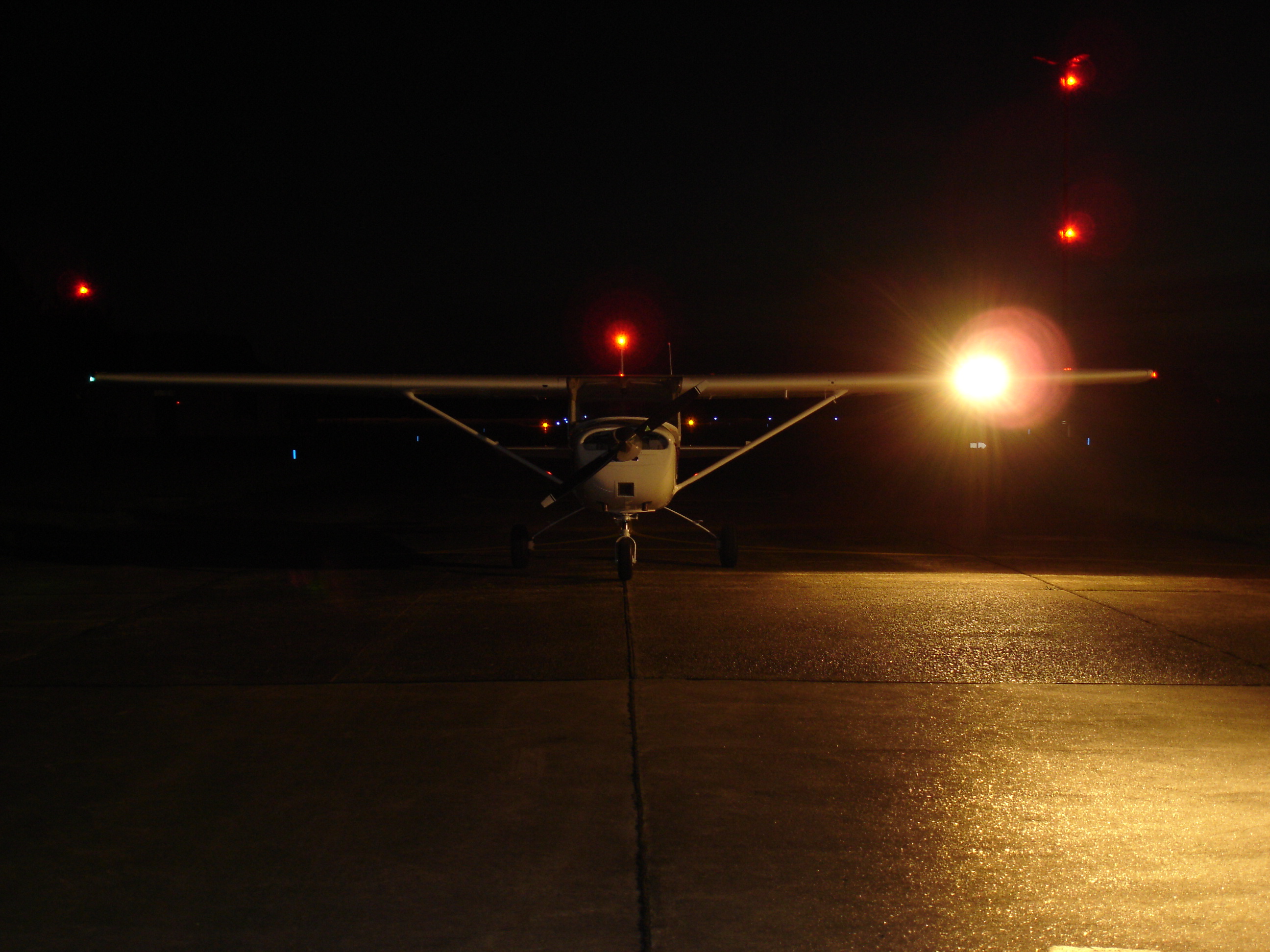

External lights:

At the top of the vertical fin a flashing beaon (ACL, red)

is mounted. At each wingtip and at the upper part of the

rudder navigation lights are mounted: LH red, RH green

and AFT white.

Two 100W-lights at the LH wing provide landing and taxi

lights.

Baggage compartment:

For a two seater aircraft, the baggage compartment

is very huge. The maximum capacity

is limited to 54 kp. The floor is anthracite carpet as well.

The core engine accessories parts are:

> Twin spark, twin magneto ignition system

> 60 Amps@14 V gear driven alternator

> Key operated electrical starter

> Dry vacuum pump for the two gyros

> Carburator with mixture control and, if necessary, heated

air inlet

> Two main mufflers and two additional cowling integrated

silencers

Mass:

MTOM: 1597 lbs / 726 kg

Dimensions:

Wing span 9,96 m, length 7,35 m, height 2,77 m

Performance:

Cruise speed @ 75 % in 7000 ft: 110 mph / 176 km/h

Fuel capacity:

26 gal / 98 L AVGAS 100 LL

Range:

4 hrs @ 75% power in 7000 ft or 440 mi / 700 km
